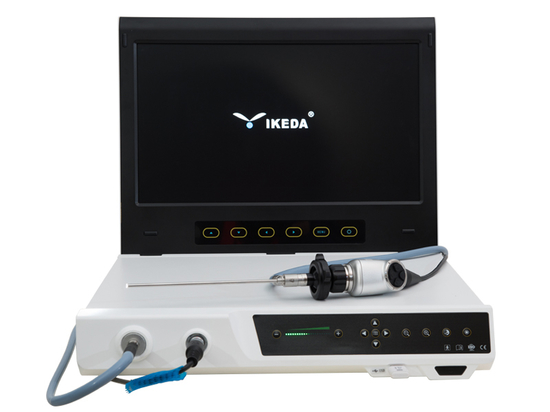

4K UHD Endoscope Camera System designed by IKEDA

IKEDA Endoscope Camera System

The 4K UHD Endoscope camera delivers images in 4K resolution (4096 x 2180 pixels) and Ultra HD (UHD) with 3840 x 2160 pixels, providing four times more image information than Full HD. “

Ultra High Definition

The Sony CMOS image sensor in the camera head of the 4K UHD produces detailed, low-noise images. The one-touch autofocus feature delivers sharp pictures on the surgeon’s screen at the push of a button. The system incorporates an ultra telescope with an extra-low dispersion lens that reduces chromatic aberration caused by light dispersion at the visible edge. This ensures that the system will consistently provide incredibly sharp depictions in true colors, even on the fringes of the visible edge.

Wider Color Gamut

4K and UHD provide surgeons with finer color calibration possibilities by broadening the range of color reproduction compared by a factor of 64 to predecessor models featuring Full HD technology. An enlarged color spectrum encompassing around one billion colors is now reality. The system improves the visibility of edges and fine details of delicate tissue, such as blood and lymphatic vessels and nerves. Above all, the richer reproduction of reds assists surgeons in ensuring that incisions are even more accurate.

Ultra High Definition:

● improves visibility and allows more precise and safe surgery

● provides four times more information than conventional Full HD imaging systems

● closer distance – half the distance of HD

Wider Color Gamut:

● realizes rich color reproduction and provides suitable colors for each clinical discipline

● enables easier determination of tissue boundaries (fat, nerves, vessels, etc.)

● better visualization of blood vessels and lesions due to high range of red color reproduction

Magnified Visualization:

● improves visibility and operability with a large screen and electronic zoom

● reduces “sword fighting” of hand instruments and prevents mist and smoke

● allows surgeons to observe fine patterns and structures of tissues in the body in extreme detail even when enlarged

Main Features

1. Sony CMOS 4K Camera

2. Built-in LED Cold Light Source

3. Additional HD Medical Monitor can be connected via HDMI video output

4. Recording function can be achieved

5. The workstation can be connected for report printing function

6. Suggest to be used for all rigid endoscopes, such as rigid (ENT) otoscope, laryngoscope, sinoscope, laparoscope, hysteroscope, cystoscope, arthroscope, spine endoscope etc.This model will have a good surgery performance.
