Phenolic Laminate vs Epoxy Resin for Lab Countertops: Spec Guide for Architects, Contractors & Public Procurement

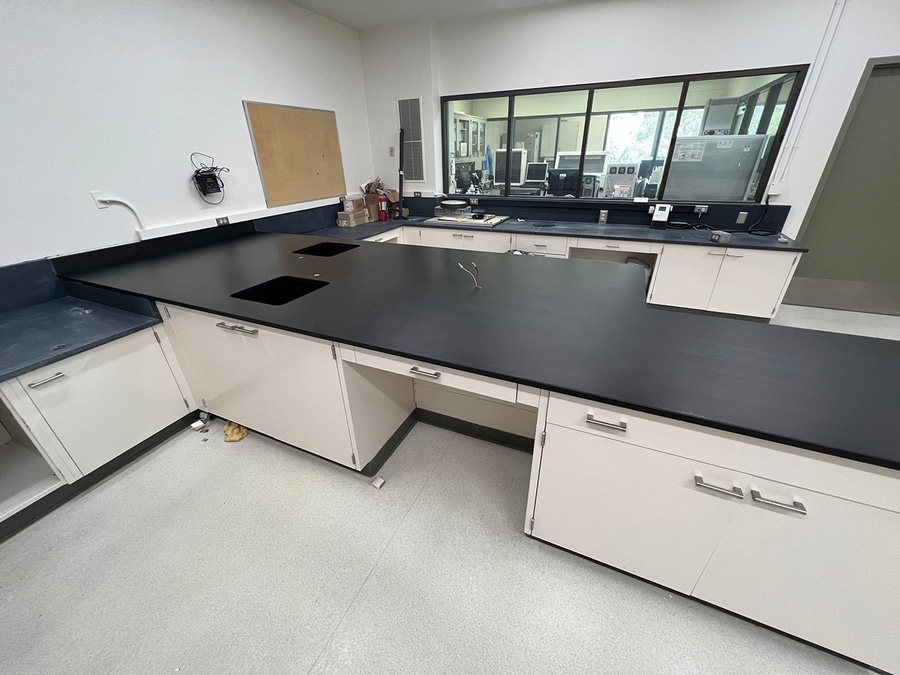

Phenolic Laminate vs Epoxy Resin for Lab Countertops

Introduction – Why Material Spec Makes or Breaks Lab Project ROI
Lab countertops are the highest-wear asset in education, government R&D, industrial QC, and clinical labs. Architects, MEP contractors, school procurement teams, and public tender managers constantly face one core specification dilemma:

Solid phenolic laminate (HPL phenolic / anti-bette) or cast epoxy resin?

After 28 years producing lab-grade HPL phenolic panels and supplying thousands of K12, university, municipal, and industrial lab projects globally, I’ve seen costly mis-specifications: overspending on epoxy for low-risk teaching labs, or premature phenolic failure in extreme chemical synthesis spaces.

This guide delivers data-backed comparisons, clear application matchups, total cost of ownership (TCO) breakdown, and tender-ready specification language tailored for your stakeholder roles.

Core Material Construction Basics
Phenolic Laminate (Solid Core HPL / Anti-Bette)
Manufactured by compressing dozens of resin-impregnated kraft paper layers under 130–150°C high pressure into a 100% solid, self-supporting monolithic slab (no plywood/MDF substrate required). A melamine chemical-resistant top layer delivers sealed, non-porous performance standard to GB 24820, ASTM D543, and ISO lab furniture norms.

Standard lab thickness: 12mm / 16mm / 20mm / 25mm.

Cast Epoxy Resin Countertop
Poured, cured solid composite of epoxy resin, silica filler, and pigment, cast into single-piece slabs or seamless in-situ tops. Fully homogeneous through-body structure, built for extreme chemical and thermal exposure.

Standard lab thickness: 25mm–38mm, significantly heavier per square meter.

Head-to-Head Performance Comparison Table
Performance Metric

Phenolic Laminate (HPL)

Cast Epoxy Resin

Chemical Resistance

Excellent for diluted acids, bases, alcohols, biological stains, daily disinfectants; withstands general lab reagents. Limited long-term exposure to 98% concentrated sulfuric acid, strong oxidizers, neat heavy solvents

Industry-leading: resistant to full-strength mineral acids, caustics, organic solvents, chromic acid, persistent chemical spills; full pH 0–14 stability

Heat Tolerance

Intermittent hot glassware up to 175°C (350°F); no open flame / direct burner contact allowed

Continuous 180°C (350°F), short spike resistance >260°C (500°F); safe for Bunsen burners, hot plates, soldering, autoclave adjacent zones

Weight & Structural Load

Lightweight: ~14–16 kg/㎡ (25mm). Standard lab cabinet frames fully support; no reinforced substructure needed for standard benches

Very heavy: ~28–32 kg/㎡ (25mm). Requires upgraded heavy-duty steel cabinet framing, floor load checks for multi-story public buildings

Impact & Abrasion

Superior scratch, drop, and heavy equipment impact resistance; denser outer skin resists daily classroom abuse (ideal for student labs)

Solid but softer surface; prone to deep gouges from sharp metal tools, heavy falling hardware; heavy instrument indent risk

Water & Moisture Stability

Zero water absorption, fully waterproof core; no swelling, delamination, or mold in washdown, wet prep, coastal/humid campus labs

Non-porous but prone to minor edge creep if fabrication gaps trap standing water long-term

Fabrication & Lead Time

Fast CNC machining: sink cutouts, coved backsplashes, radius edges, modular pre-cut panels. Mass production stock available; 7–15 day typical lead time for bulk school orders

Custom cast/machining slower; complex shapes require bespoke molds; lead times often 25–45 days for large government tender lots

Upfront Material Cost (Installed Linear Ft)

$60–120 USD; 30–50% lower installed capital cost vs epoxy for equal project scale

$150–300+ USD installed; premium for high-grade lab epoxy formulations

Maintenance & Repairability

Surface scuffs cannot be sanded out; minor blemishes sealed with phenolic repair paste. Low routine care—just wipe with neutral cleaners/disinfectants daily

Deep scratches, burns, and stains fully sand & refinished on-site; seamless joint touch-ups simple. Requires periodic wax/seal coat annually for maximum lifespan

Lifespan (High-Traffic Use)

12–18 years for education, QC, biology labs

15–22 years for heavy chemical R&D labs

ESD/Anti-Static Option

Custom ESD HPL grades readily available for electronics, semiconductor testing labs

Specialty conductive epoxy exists but carries steep cost markup

Color & Finish Range

30+ standard solid matte lab hues, custom textures, matte anti-glare finishes for classroom visibility

Primarily standard black/dark grey; custom colors carry large minimum order surcharges

Ideal Application Breakdown by Project Stakeholder
When to Spec Phenolic Laminate (HPL / Anti-Bette)
Perfect fit for architects designing school campuses, municipal training labs, food & beverage QC, biology, microbiology, and light industrial testing:

K12 high school & vocational college chemistry/biology teaching labs (highest volume public procurement segment globally)

University undergraduate teaching spaces, prep rooms, storage workbenches

Food safety, water quality, environmental monitoring QC labs (diluted reagent workflows)

Wet washdown labs, humidity-prone coastal government facilities

Tender projects with fixed tight public budgets requiring compliant, long-life surfaces

Multi-story buildings where floor load capacity limits heavy epoxy slabs

Fast-track renovation/retrofit projects with compressed construction timelines

Contractor Win Tip: Phenolic laminate’s lighter weight cuts cabinet structural upgrade costs by 20–35% on average bench runs. Faster fabrication accelerates project handover for time-bound public tenders.

When to Spec Cast Epoxy Resin
Reserve epoxy exclusively for high-hazard, high-temperature core research zones:

Postgraduate organic chemistry, pharmaceutical synthesis labs with constant concentrated acid/solvent handling

Bunsen burner, molten sample, high-temperature hot plate permanent stations

Biosafety Level 2/3 labs requiring fully seamless monolithic tops with zero hidden contamination joints

Industrial chemical manufacturing R&D labs with extreme corrosive reagent cycles

Autoclave-adjacent work surfaces, metal melting, soldering heavy-duty stations

Procurement Note: Epoxy’s premium price is only justified where chemical/thermal risk cannot be mitigated by workflow protocols. Over-specifying epoxy across an entire university lab block wastes 40–60% of countertop capital budget.

Total Cost of Ownership (TCO) – Critical for Government & School Procurement
Public tender teams are mandated to evaluate full lifecycle cost, not just upfront material price.

HPL Phenolic TCO Advantage (Education 15-Year Lifecycle Model):

Lower raw material + installation + cabinet reinforcement costs upfront

No annual sealing/wax maintenance labor fees

Faster delivery reduces construction financing hold times for municipal projects

Modular panels allow single-bench replacement instead of full room teardown if one unit is damaged

Epoxy TCO Justification (High-Risk Research 20-Year Lifecycle):

Longer maximum lifespan in unforgiving chemical environments

Full refinish capability extends usable life by 3–5 years vs damaged phenolic tops

Seamless build reduces deep clean labor costs in GMP/regulated biotech spaces

Key Specification & Tender Writing Guidance
Phenolic Laminate Spec Clauses (Ready for Tender Docs)
Lab countertop material shall be solid core phenolic laminate (anti-bette), minimum 25mm thickness, manufactured via high-pressure thermal fusion of phenolic-resin impregnated kraft paper layers. Surface melamine finish shall meet ASTM D543 chemical resistance for diluted lab reagents, ISO 17100 abrasion resistance, zero water absorption, fire class B1. Supplier shall provide 10-year material performance warranty, third-party SGS test reports, and full CNC fabrication for sinks, backsplashes, and bench cutouts.

Epoxy Resin Spec Clauses for High-Hazard Labs
Cast epoxy resin countertops, homogeneous through-body construction, minimum 25mm thickness, lab-grade formulation resistant to 98% sulfuric acid, 30% sodium hydroxide, and common organic solvents. Intermittent heat resistance ≥260°C, seamless monolithic joints, sand-refinishable surface, minimum 15-year manufacturer warranty for chemical and thermal performance.

Final Expert Verdict from 28 Years of HPL Lab Manufacturing
80% of global education, municipal, and mid-tier industrial lab projects achieve optimal value with phenolic laminate. It balances safety, durability, speed, and budget for mainstream lab workflows—this is why HPL remains the global standard for school public tender builds.

Epoxy is a niche premium solution, not a one-size-fits-all upgrade. Only deploy where daily extreme heat/concentrated chemicals are non-negotiable operational requirements.

For architects/contractors: Always map reagent lists, heat equipment, floor load limits, and tender budget caps before locking material specs—this eliminates costly change orders mid-project.

For government/school procurement: Require certified lab-grade test datasheets and manufacturer factory warranties to avoid low-grade generic panels that fail compliance audits early.
