Impulse sealer for medical packaging and the pharmaceutical industry

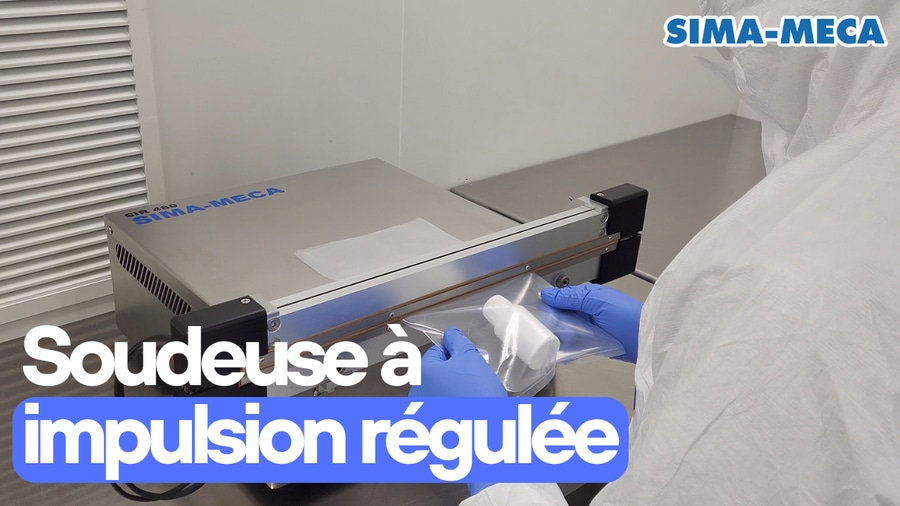

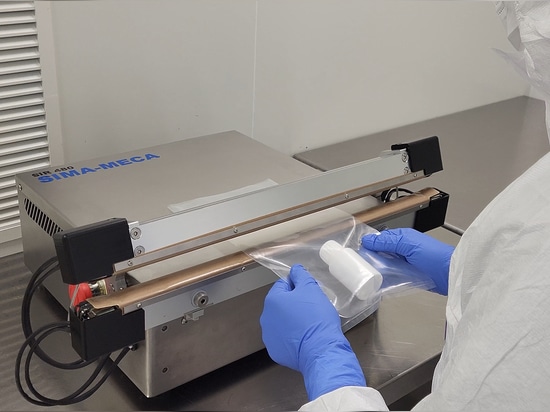

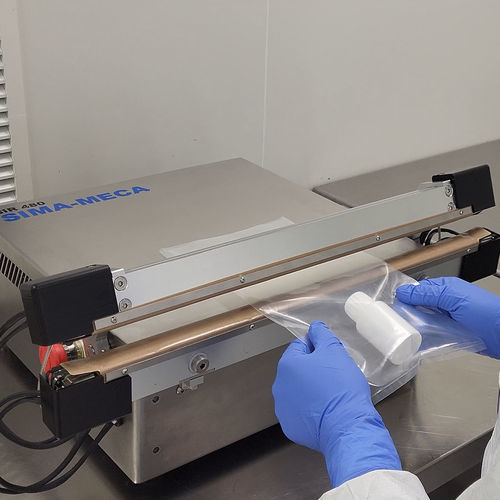

The SIR 480, which is certifiable, is the new regulated pulse welder developed by SIMA-MECA.
Designed for medical and pharmaceutical packaging in clean rooms, it combines performance and reliability and complies with ISO 11607-2.
A solution tailored to the pharmaceutical and medical industries :
The SIR 480 is compatible with different types of packaging: PE bags, PA/PE bags or Tyvek/PE sleeves. It does not require compressed air, simplifying its integration into your production environment. We have specially designed its stainless steel construction for clean rooms.
Thanks to its interface (touch screen), our impulse sealer allows simple and intuitive control of the sealing parameters and ensures the safety of your processes with alerts in case of out-of-tolerance values.
Some technical points :
Temperature: 110°C to 200°C, accuracy ±4°C
Time: 1 to 15 seconds, accuracy ±0.15 s
Pressure: adjustable electromagnet 2 to 11.5 A, accuracy 0.3 A
Heating: heating elements regulated to 1/10th of a degree.
Traceability and compliance
In addition, the SIR 480 is designed to ensure the traceability of each operation. Welding data (time, temperature, pressure) can be exported via a USB key, allowing for complete documentation and compliance with the requirements of ISO 11607-2.
Our sealing machine is CE marked and meets medical packaging validation standards.
