Transcranial Doppler System – EK-1000B

Product Overview The EK-1000B Transcranial Doppler (TCD) System is a compact, portable neurodiagnostic solution for hospitals, clinics, and private practices. This Class II medical device (CE, ISO certified) delivers reliable cerebrovascular assessme

What Is TCD?
TCD is a non-invasive ultrasound test that measures blood flow velocity in major cerebral arteries. Like a "radar" for the brain, it provides real-time hemodynamic data through the circle of Willis—without contrast agents or radiation.

Key Features
Function Clinical Value
Routine Diagnosis Evaluate stenosis/occlusion, assess autoregulation, monitor ICP, support brain death determination
Flow Velocity Monitoring Real-time hemodynamic assessment; detects right-to-left shunts 3x more effectively than echocardiography
Stenosis & Occlusion Diagnosis High sensitivity/specificity for intracranial arterial stenosis
Vasospasm Detection 89–98% sensitivity/specificity for SAH-related vasospasm
Multi-Gate Display 4-window simultaneous display + M-mode for multi-depth comparison
Embolic Detection Spindle-wave embolus recognition for stroke risk screening
Technical Specifications (EK-1000B)
Parameter Specification
Model EK-1000B (Class II, CE/ISO)
Probe 2MHz PW (standard) + 4MHz CW optional
Detection Depth 5–160mm (PW mode)
Max Velocity ≥300 cm/s
Velocity Error ≤10%
Depth Accuracy 1mm
Display Multi-gate, 4-window + M-mode
Memory 240-second scrolling storage
Power 220V±10% 50Hz

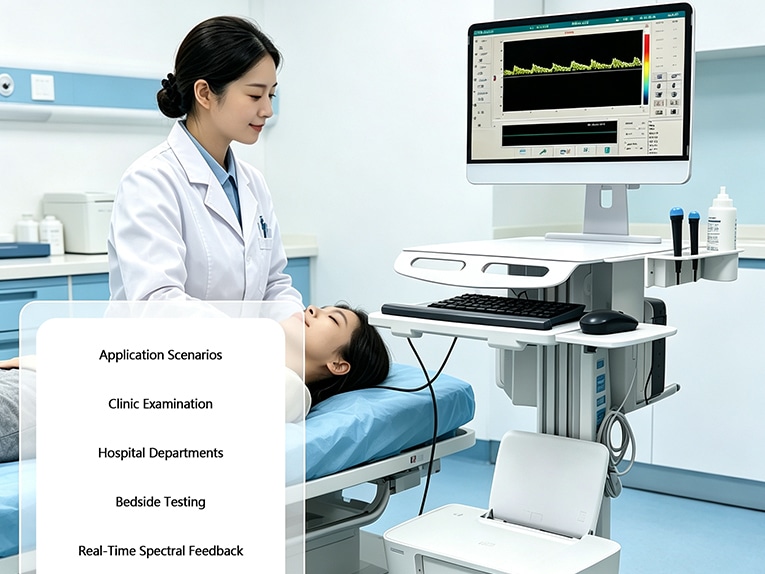

Applications
Departments: Neurology, Neurosurgery, Neurointervention, Vascular Surgery, Ultrasound, ICU, Emergency, Geriatrics, Health Check-up

Indications: Stroke evaluation, vasospasm monitoring, stenosis/occlusion diagnosis, emboli detection, ICP assessment

Advantages
✅ Non-invasive & radiation-free – Safe for repeated use

✅ Portable – Compact, foldable for bedside or mobile screening

✅ Cost-effective – Lower cost than CT/MRI angiography

✅ Fast – 15–30 minute examination

✅ User-friendly – Automatic parameter calculation (PSV, MV, RI, PI)

Clinical Evidence
Vasospasm: TCD shows 89–98% accuracy for SAH-related vasospasm

Right-to-Left Shunt: Detection odds 3x higher with TCD vs. echocardiography (2026 study)

Stroke Prevention: Recommended by AHA for vasospasm monitoring
